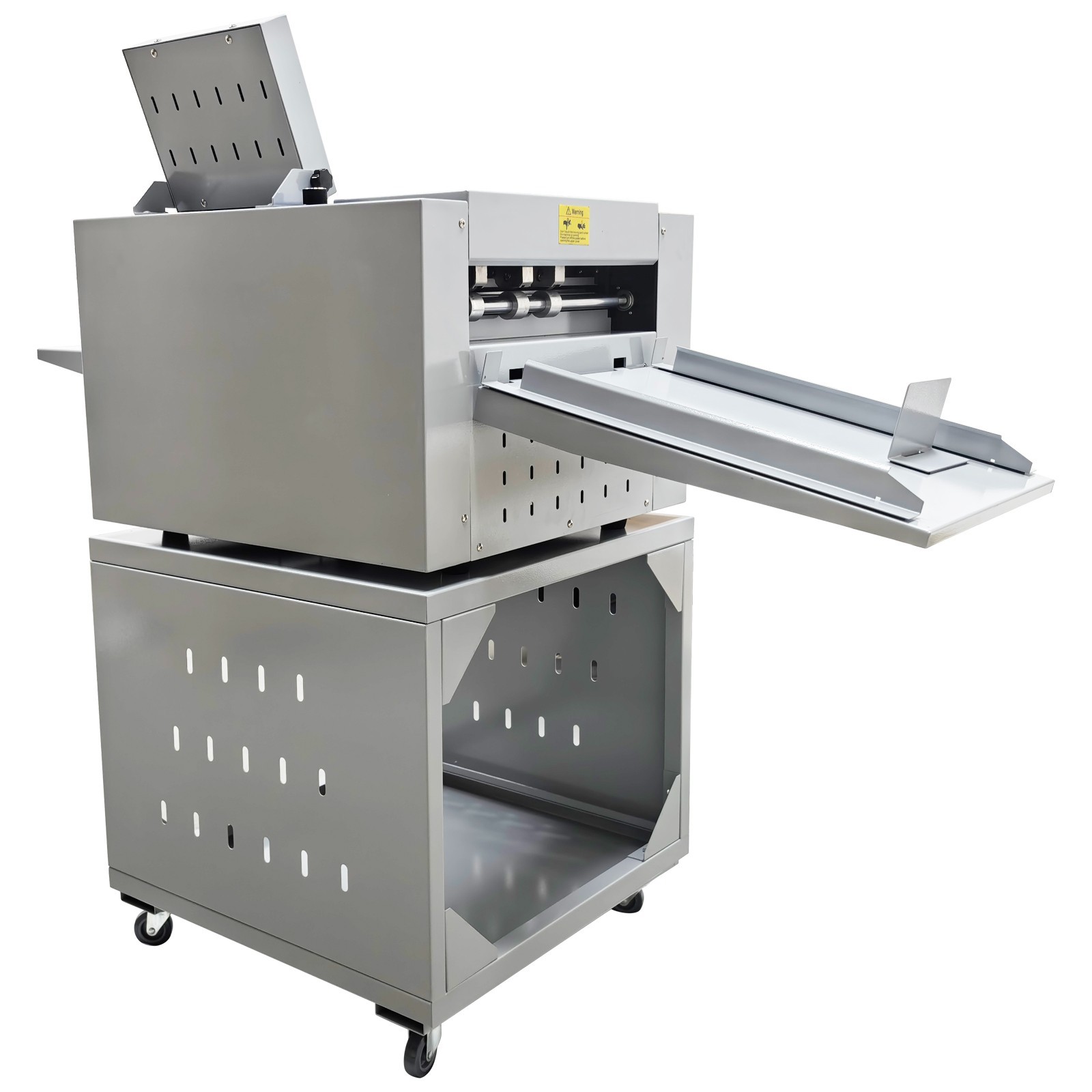

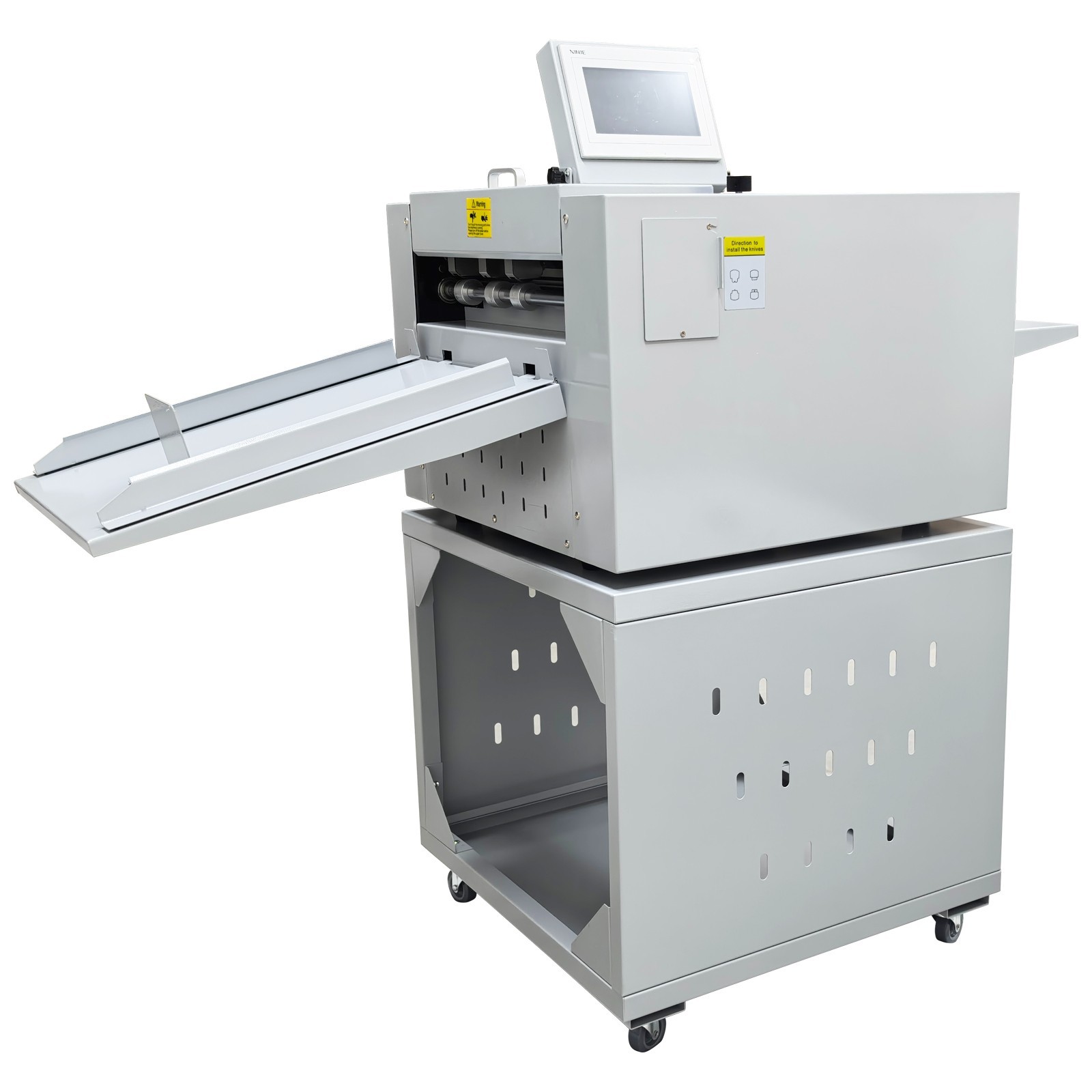

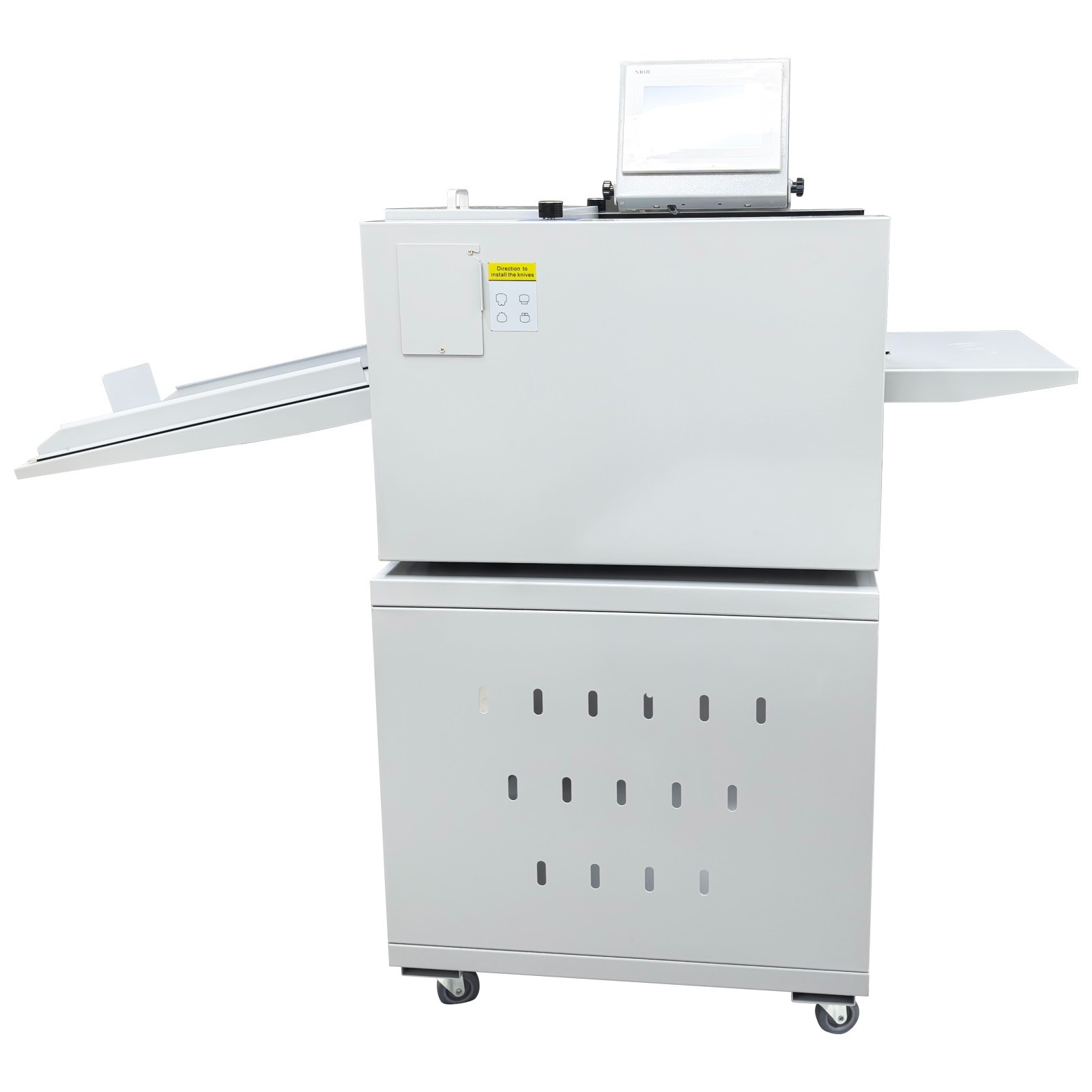

13'' Automatic Digital Creasing Machine 110V with Auto Feeder Cabinet Touch Cont

Description

330mm/13'' Full Automatic Electric Digital Touch Control Creasing and Perforating Machine 110V Product Overview The full automatic digital creasing machine is a professional device for forming creases and dotted lines on different paper sheets such as coated paper, laminated paper and varnish paper. The machine has the advantages of achieving automatic feeding of paper sheets, perfectly integrating the transverse creasing and perforating function and the longitudinal perforating function, saving time and labor, reducing the energy consumption and improving the working efficiency. The electric creasing machine can be widely used in various places such as the printing houses, packing houses and office buildings, and is an ideal product for customers. Product Parameters Power supply AC110V 60Hz 200W Paper size 210*297mm-330*900mm (8.27''*11.69''-12.99''*35.43'') Paper type Coated paper, laminated paper, varnish paper, etc. Paper loading capacity 60mm (2.36'') Creasing width 1.0mm standard configuration Working precision ± 0.3mm Working speed 2600 sheets/h (A4/one crease) Creasing/perforating times 0-32 times Paper thickness 0.1-0.35mm (creasing), 0.1-0.2mm (transverse perforating) Operation interface Touch screen Paper feeding mode Top air suction automatic paper feeding Net weight 74KG (163.14LB) Tool 3 tool sets (Transverse creasing tool set*1, transverse perforating tool set*1, longitudinal perforating tool set*1) Attention 1. The power supply must be grounded safely and securely. 2. The operator must read the operation manual carefully and be trained before using the machine. 3. Only professionals are allowed to disassemble and repair the machine. 4. Keep the machine away from the inflammable and explosive substances. 5. Ensure that the machine stops before the tool sets are replaced. 6. Do not stop the machine during operation. Do not touch the running parts during operation. Do not put the hands into the machine. Do not allow people or objects to be located next to the running parts of the machine. Product Features Convenient Touch Control The 5'' intelligent touch screen is designed for setting and adjusting the multiple technical parameters, so the color screen touch control and display are well achieved, and different parameters can be tested and adjusted according to the actual condition. The inclination angle of the touch screen can be easily adjusted by the black screws as required, operation is easy and effortless, and the good adaptability is achieved. Automatic Paper Feeding The top air suction automatic paper feeding system is used for automatically feeding paper instead of manual feeding, thereby greatly reducing the manual labor, and improving the working efficiency. The wind blowing port can be controlled to be opened and closed, and the air volume can be freely adjusted through the touch screen to ensure that various paper sheets with different thicknesses can be smoothly fed. Precision Creasing & Perforating The automatic creasing machine is equipped with 3 tools for transverse creasing and perforating and longitudinal perforating operation, thereby achieving the purpose of accurately completing the transverse and longitudinal dotted lines at a time and simplifying the complex operating procedure. The creasing and perforating tools are conveniently installed and stored in a hidden mode, so the safety protection is enhanced, and the service life of each tool is well prolonged. Accurate Skewing Adjustment The knurled rolling wheel is used for adjusting the skewed paper fed by the feeding platform in the working process. When the paper sheets deviate, the operator can rotate the rolling wheel to correct the paper feeding deviation according to the specific skewing direction, so the feeding deviation can be effectively eliminated, and the normal feeding of paper is guaranteed. Effective Paper Separation Control By the use of the paper separation adjusting knob, the paper feeding baffle piece can be accurately adjusted to control the paper feeding number, thereby effectively avoiding simultaneous feeding of multiple paper sheets and ensuring that the paper sheets are fed one by one. The paper separation adjusting effect is better, and precision feeding of paper is greatly facilitated. Stable Paper Pressing & Limiting The automatic creasing machine is equipped with a long paper pressing parts for A3 paper and two short paper pressing parts for A4 paper, so the paper sheets of different specifications can be stably pressed and prevented from moving after being lifted, and the adaptability is enhanced. The paper baffle parts are also designed for limiting the position of paper, thereby facilitating the paper suction and feeding operation. Orderly Paper Collection A large paper receiving tray is detachably hung below the paper outlet and used for receiving and collecting the finished products neatly and orderly. The baffles on the three sides can effectively limit the paper and prevent the paper from scattering after the creasing or perforating operation is accomplished. Independent & Combined Use The automatic creasing machine is composed of a machine body and a cabinet which can be used independently or cooperatively according to the working environments. The stable supporting legs are designed for the machine body so that the machine body can be stably supported and placed on the cabinet. Operation Method 1. Unpack the box, check whether all accessories are intact, and assemble all the accessories. 2. Select the appropriate creasing/perforating tool set as required and install the tool set at the tool chamber. 3. Connect the power cord to the 110V power socket with reliable grounding, and turn on the power switch. 4. Set the technical parameters on the touch screen as needed, and test the creasing/perforating effect. Conduct normal operation if the creasing/perforating effect meets the demand. Adjust the parameters and different adjusters if the creasing/perforating effect is not ideal. Application As a professional creasing device, the automatic digital creasing machine can form transverse creases and dotted lines and longitudinal dotted lines on different paper sheets such as coated paper, laminated paper and varnish paper, so different creasing and perforating requirements of customers are well met, and the machine has a wide application range and good using effect. Product Display Item Number (122164): 1 x Full Automatic Electric Digital Creasing Machine 13'' 110V Shipping & Handling Details Default Shipping Cost or Free Shipping Information: Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Sales Tax of 8% will be applied for orders shipped within the state of California. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges All returns must be made within 14 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. Items returned under the buyer閳ユ獨 remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Payment eCheck Issues: Payments via eCheck do not clear immediately. Usually you will wait 5-7 days after checkout for it to clear. Then we will arrange shipments for you. Warranty & Feedback 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by the seller. We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much.
