220V Oil Fume Pipeline Cleaning Machine with110V transformer Pipe Dia3.94-31.5in

Description

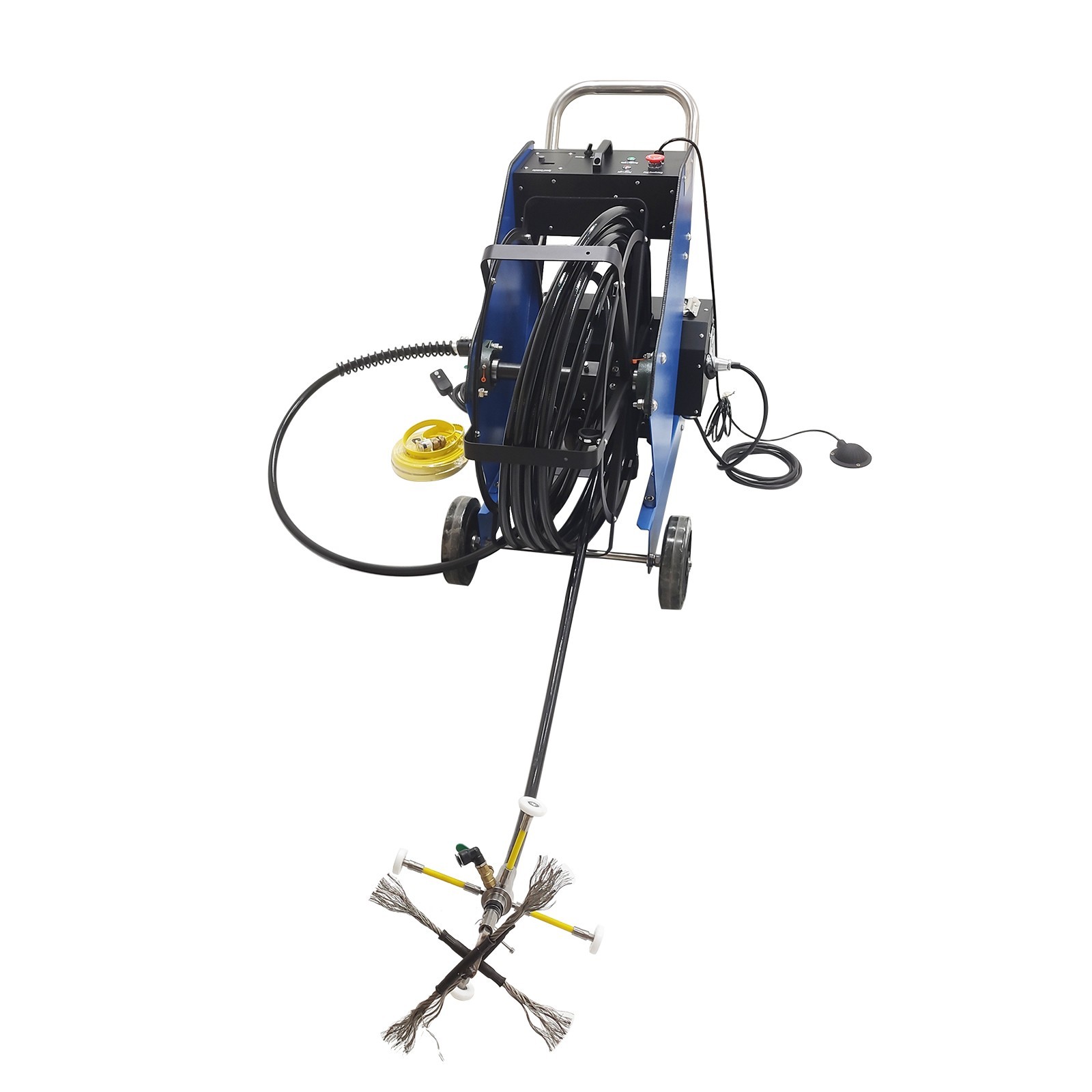

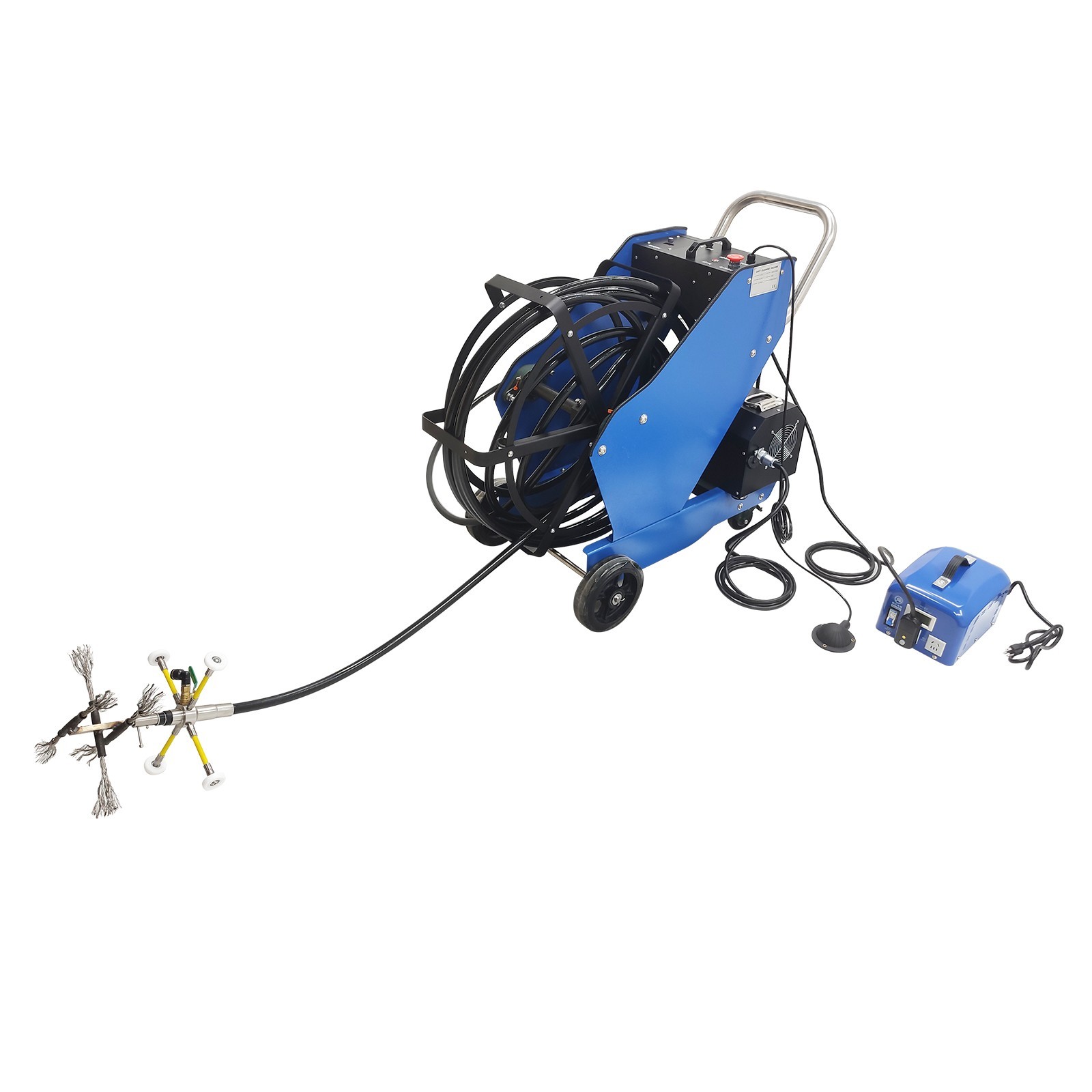

TECHTONGDA®220V Oil Fume Pipeline Cleaning Machine with 110V transformer Pipe Dia 3.94-31.5in The oil fume pipeline cleaning machine is a special device for cleaning oil fume pipelines in the catering industry. It is mainly used to remove oil stains and impurities accumulating in the pipelines, thereby ensuring the normal operation of the fume exhaust system. By means of the high-pressure water jet or cleaning agent dissolution and removal technology, heavy oil stains in the oil fume pipeline are removed, the health risks caused by manual operation are avoided, and the working efficiency is improved. Parameters Main Unit Voltage 220V/50Hz Single-phase electricity (A 110V transformer is given as a present. If your power supply is 110V, you can connect the machine to the transformer and then connect the transformer to your 110V power supply.) Power 1500W Rotating speed 0-1400rpm Applicable pipe diameter 100-800mm Quick connection water pipe 20m Flexible shaft 15m Steel wire brush 4 pcs (300mm/400mm/600mm/800mm) Nylon brush 2 pcs (400mm/600mm) Self-priming pump Voltage 220V/50Hz Power 750W Flow rate 2.7m³/h Allowable medium All kinds of cleaning solutions Attention *** 1. Be sure to completely stretch the flexible shaft before powering on the machine, otherwise the flexible shaft will be twisted off. The customers need to purchase accessories at their own expense for replacing the accessories damaged by incorrect operation. *** 2. Be sure to wear goggles before operation. 3. Select the appropriate cleaning brushes. 4. Please turn off the power when the machine is repaired or unattended. Please unplug the machine when the power supply is disconnected. Do not use the machine if the plug and wires are damaged. 5. Do not use the machine when the ambient temperature is above 40 DEG C. 6. When using the machine host and plug, please pay attention to keeping your hands dry. 7. Please do not use the machine around flammable gases and liquids. 8. When moving or starting the machine, pay attention to keeping clothes, hair and other things away from the machine. When the machine is powered on, do not touch the transmission device with hands to avoid injuries. 9. Keep the machine clean. Keep the wires away from the heat source and prevent the wires from making contact with sharp objects to avoid scratches. 10. Please do not place the machine on uneven places and be sure to keep the machine body stable. 11. Stay alert - Please always pay attention to the operation conditions of the machine. Product Features The control panel is compact and simple in structure and easy to operate. The rotating speed is adjustable, the design of forward and reverse rotation is adopted, and the hygienic dead angles are reduced to the maximum extent. Multiple cleaning styles can be selected, it supports brush cleaning, detergent cleaning and high-temperature water cleaning, strong stain removal is achieved, and it is efficient and convenient. The machine is equipped with a self-priming pump, so it is convenient for outdoor operation, the movable type cleaning service, emergency cleaning and other application scenarios. The time and labor are saved, deployment is flexible, the adaptability is high, and the efficiency and reliability are high. The machine can cooperate with the foam generator (022855), the foam is sprayed out of the front section and sprayed onto the oil stain surface to dissolve the heavy oil stains, so the cleaning is more thorough. The nylon brushes and steel wire brushes can be selected to use according to the working conditions, and the machine is suitable for square pipes, round pipes and vertical pipes. The machine is equipped with a 15m flexible shaft, meeting the requirement for long-distance cleaning. Note: Be sure to completely stretch the flexible shaft before powering on the machine, otherwise the flexible shaft will be twisted off. Operation Method 1. Pull out the flexible shaft completely, and straighten the flexible shaft as much as possible to use. 2. Connect the power end of the flexible shaft to the main machine and tighten it with a nut. 3. Select a cleaning brush with the size slightly smaller than the internal diameter of the pipeline to be cleaned, connect the cleaning brush to the flexible shaft and fix it with a pin to prevent it from falling off. 4. Connect the main machine and the control cabinet with a data cable. 5. Connect the foot switch to the pneumatic connector. 6. Connect one end of the water pipe to the flexible shaft, and connect the other end of the water pipe to the faucet. 7. If the machine needs to be connected with the self-priming pump, please connect the water pipe of the self-priming pump to the connector of the flexible shaft. 8. Connect the PVC water pipe to the water inlet of the self-priming pump, and put the other end of the PVC water pipe into the water source. The self-priming pump needs to be filled with water when it is used for the first time. 9. Connect the machine with the power supply, turn on the main switch and select the forward or reverse rotation according to the working conditions. The foot switch is used for controlling the brush. Press the emergency switch in emergency to achieve emergency power-off operation. Application The oil fume pipeline cleaning machine can conduct cleaning operation with different brushes, can cooperate with the self-priming pump to conduct long-distance cleaning and can also be matched with an optional foam generator (022855) to achieve dual operation of foam spraying and cleaning. It is suitable for cleaning the oil fume pipelines in commercial kitchens, hotels, restaurants and other places, and especially cleaning the areas with severe oil stains, the cleaning efficiency can be significantly improved, and the service life of the pipeline can be prolonged. 220V Oil Fume Pipeline Cleaning Machine with 110V transformer Pipe Dia 3.94-31.5in# 022TOP825 Shipping & Handling Details Default Shipping Cost or Free Shipping Information: ▲ Default shipping cost or free shipping service is only for the customers from Canada or the lower 48 United States by Canada Post, USPS or the UPS Ground. Customers from other areas or needs other shipping ways, please contact us. ▲ Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. ▲ Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges ▲ All returns must be made within 14 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. ▲ Items returned under the buyer’s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. ▲ Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges ▲ All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products ▲ If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. ▲ Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. ▲ If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Payment eCheck Issues: Payments via eCheck do not clear immediately. Usually you will wait 5-7 days after checkout for it to clear. Then we will arrange shipments for you. Warranty & Feedback ▲ 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. ▲ Any warranty shipping cost to us is responsible by buyer. ▲ Any shipping cost to buyer is responsible by the seller. ▲ We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much. On Sep 11, 2025 at 23:29:21 PDT, seller added the following information:
