Ultra Gauge EM Plus OBDII OBD2 Code Scan Tool Multi Turbo Gauge HORIZ VERT MOUNT

Description

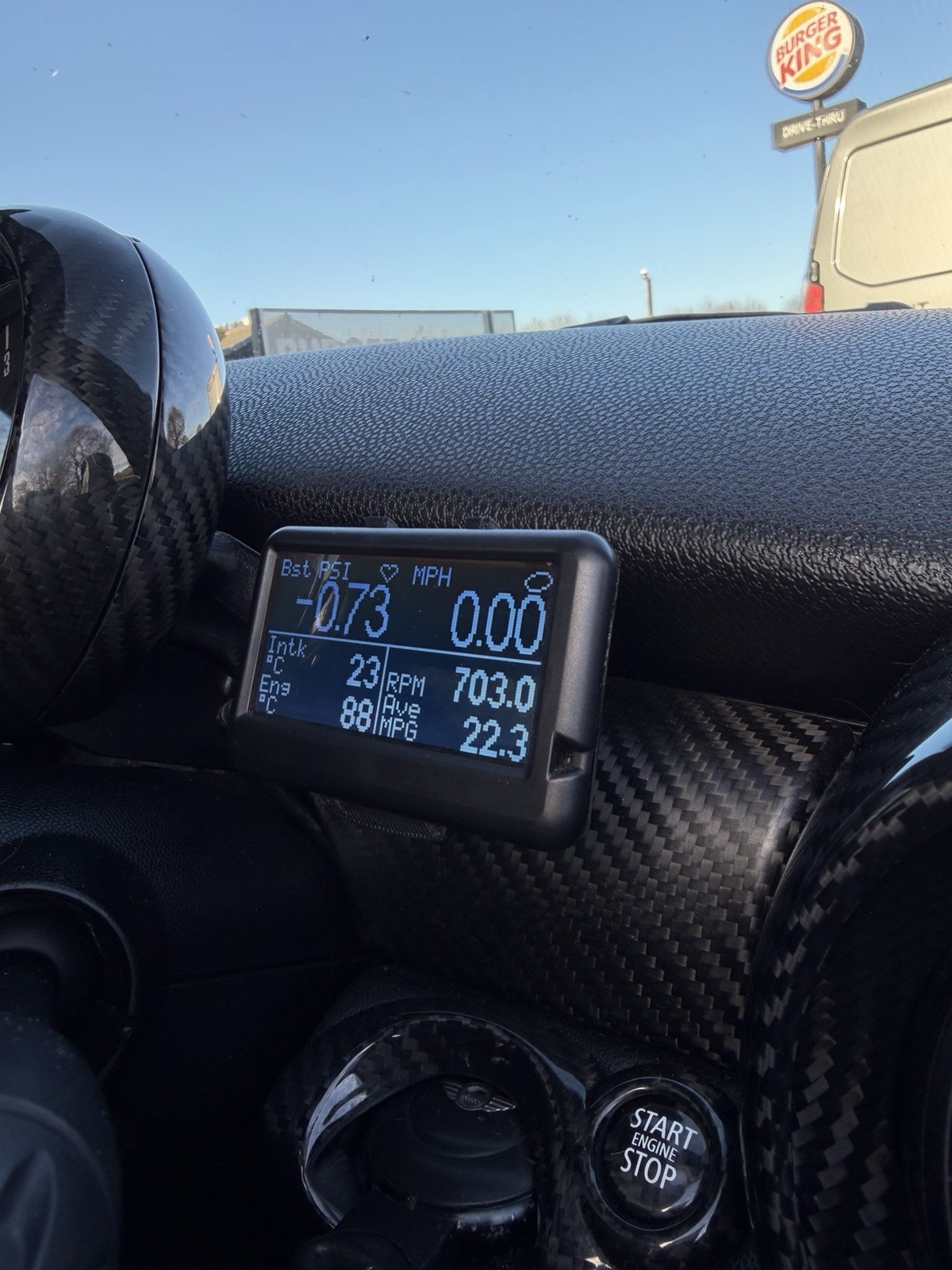

KillAllChrome® KillAllChrome The Ultra Gauge EM Plus can display 78+ possible standardised gauges. Gauge selection is completely customisable. The actual gauges available are vehicle dependent. If your vehicle supports any of the gauges listed, then the gauge will be available for display by Ultra Gauge. Suitable for 2002+ onwards ensuring OBD2 compatible If you have a MINI we offer a separate mount that screws on the back of the taco (see other listings) If you use the mount it comes with we recommend sticking to a flat surface. Some MINI R53 cars need the 'Power off Detect mode' changing to mode 5, to allow the Ultra Gauge to switch off with the car. Please see page 44 of the instruction manual. We that we do not include a printed copy of the instruction manual, due to the length of it (this can be found on ultra gauges website) These only come with the ultra gauge standard mount that sticks to your dash. The Ultra Gauge EM v1.4 PLUS is a very useful tool for any regular, or tuned vehicle. Where some vehicles come with just a few, or even no dashboard gauges, the Ultra Gauge allows you to access a huge range of live, accurate readouts. Please ensure your car is OBDII compliant in your country, prior to purchasing. This listing is for 1x scan gauge, this comes with a swivel mount but the foot is rubber so it adheres to curved surfaces also, it comes with very strong sticky. (note for mini owners works on ALL minis) Please note that Ultra Gauge do not ship these in retail boxes, or include a printed version of the instructions. Instructions can be downloaded by searching for "Ultra Gauge Instructions" online. (OR SCROLL TO BOTTOM FOR OUR INSTALL/SET UP VIDEO. Some MINIs / cars need the 'Power off Detect mode' changing to mode 5, to allow the Ultra Gauge to switch off with the car. Please see page 44 of the instruction manual. With 78 possible readouts, readiness monitors and performance measurements, this inexpensive gauge is must have. Fitted in less than 5 minutes, this could save your car should you have a malfunction and otherwise have no idea on things like water temperature. Code Reading - The Ultra Gauge can also be used to read and clear codes. Should your car develop a fault, you are able to read the fault immediately. You are also able to set alarms, for example should your water temperature exceed a certain threshold, the alarm will be raised. Performance readouts - These allow you to measure your times such as 0-60, 0-100 and quarter miles times. It does measure via OBD and therefore wheel speed, so take these results with a pinch of salt. Readiness Monitors - This feature will let you know when your car is ready to go. With readouts on things such as the Catalytic converter, O2 sensors and much more, you will be able to see when your vehicle is at it's optimum temperatures. Live Readouts - Below is a list of all 78 POTENTIAL readouts. Please note, some cars will vary on what can & can't be viewed live from the OBD2 port. For example, Vauxhall Corsa VXR's, as well as the Audi S3 8P platform (Seat Leon included) cannot read boost pressure. These ship with stick back velcro mounts, which are very versatile. Gauge % Engine Load Engine Coolant Temperature (ºF) Engine Coolant Temperature (ºC) Short Term Fuel Trim Bank 1 Long Term Fuel Trim Bank 1 Short Term Fuel Trim Bank 2 Long Term Fuel Trim Bank 2 Fuel Pressure (PSI) Fuel Pressure (kPa) Intake Manifold Absolute Pressure (MAP)(PSI) Intake Manifold Absolute Pressure (MAP)(kPa) RPM MPH KPH Timing Advance Intake Air Temperature (ºF) Intake Air Temperature (ºC) Mass Air Flow Sensor 1 (g/s) Absolute Throttle Position 1 % Bank 1 0xygen Sensor 1 Voltage*** Bank 1 0xygen Sensor 2 Voltage*** Bank 2 0xygen Sensor 1 Voltage*** Bank 2 0xygen Sensor 2 Voltage*** Run time since last start (hours:mins) Miles traveled with Check Engine Light On. Kilometers traveled with Check Engine Light On. Fuel Pressure (Diesel & Direct Injection) (PSI) Fuel Pressure (Diesel & Direct Injection) (10kPa) Bank 1 Wide 0xygen Sensor 1 Lambda (voltage based)*** Bank 1 Wide Oxygen Sensor 2 Lambda (voltage based)(UG Plus & UG MX only)*** Bank 2 Wide 0xygen Sensor 1 Lambda (voltage based)*** Bank 2 Wide Oxygen Sensor 2 Lambda (voltage based)(UG Plus & UG MX only)*** Bank 1 Wide 0xygen Sensor 1 Lambda (current based)(UG Plus & UG MX only)*** Bank 1 Wide Oxygen Sensor 2 Lambda (current based)(UG Plus & UG MX only)*** Bank 2 Wide 0xygen Sensor 1 Lambda (current based)(UG Plus & UG MX only)*** Bank 2 Wide Oxygen Sensor 2 Lambda (current based)(UG Plus & UG MX only)*** EGR Flow % EGR Flow % Error Evaporative Purge % Fuel Level % of full Number of Warm-ups since Check Engine Light Cleared Miles traveled since Check Engine Light Cleared Kilometers traveled since Check Engine Light Cleared Evaporative System (PSI) Evaporative System (Pa) Barometric Pressure – Inches of Mercury (inHg) Barometric Pressure – Inches of Mercury (kPa) Catalytic Converter Bank 1 Sensor 1 Temperature (ºF) Catalytic Converter Bank 1 Sensor 1 Temperature (ºC) Catalytic Converter Bank 2 Sensor 1 Temperature (ºF) Catalytic Converter Bank 2 Sensor 1 Temperature (ºC) Catalytic Converter Bank 1 Sensor 2 Temperature (ºF) Catalytic Converter Bank 1 Sensor 2 Temperature (ºC) Catalytic Converter Bank 2 Sensor 2 Temperature (ºF) Catalytic Converter Bank 2 Sensor 2 Temperature (ºC) Battery Voltage (Measured by ECM) UltraGauge Battery Voltage (Measured by UG) Load absolute % AFR Commanded Ratio Relative Throttle Position % Outside Ambient Air Temperature (ºF) Outside Ambient Air Temperature (ºC) Absolute Throttle Position 2 % Accelerator Pedal Position 1 % Accelerator Pedal Position 2 % Command Throttle Position % Boost Pressure, (Relative Pressure) (PSI) Boost Pressure, (Relative Pressure) (kPa) Brake Horsepower 1 Brake Kilowatts 1 Torque 1 (ft lbs) Torque 1 (N.m) Brake Horsepower 2 Brake Kilowatts 2 Torque 2 (ft lbs) Torque 2 (N.m) Mass Air Flow Sensor 2 (g/s)– Calculated Instantaneous MPG Instantaneous KPL Instantaneous L/100Km Average MPG – General Average KPL – General Average L/100Km – General Average MPH – General Average KPH – General Run Time – General Miles – General (miles) Kilometers – General (miles) Fuel Used – General (gallons) Fuel Used – General (liters) Average Gallons/Hour - General Average Liters/Hour - General Fuel Level (gallons) Fuel Level (liters) Instantaneous Gallons/hour Instantaneous Liters/hour Distance to Empty (miles) Distance to Empty (kilometers) Time to Empty Volumetric Efficiency (MAP vehicles only) General Trip Gauges Average MPG Fuel Used Average Gallons/hour Average MPH Distance (miles) Run Time Average KPH Average KPL Average L/100Km Liters Used Average Liters/Hour Distance (kilometers) Short Trip Gauges Average MPG Fuel Used Average Gallons/hour Average MPH Distance (miles) Run Time Average KPH Average KPL Average L/100Km Liters Used Average Liters/Hour Distance (kilometers)
